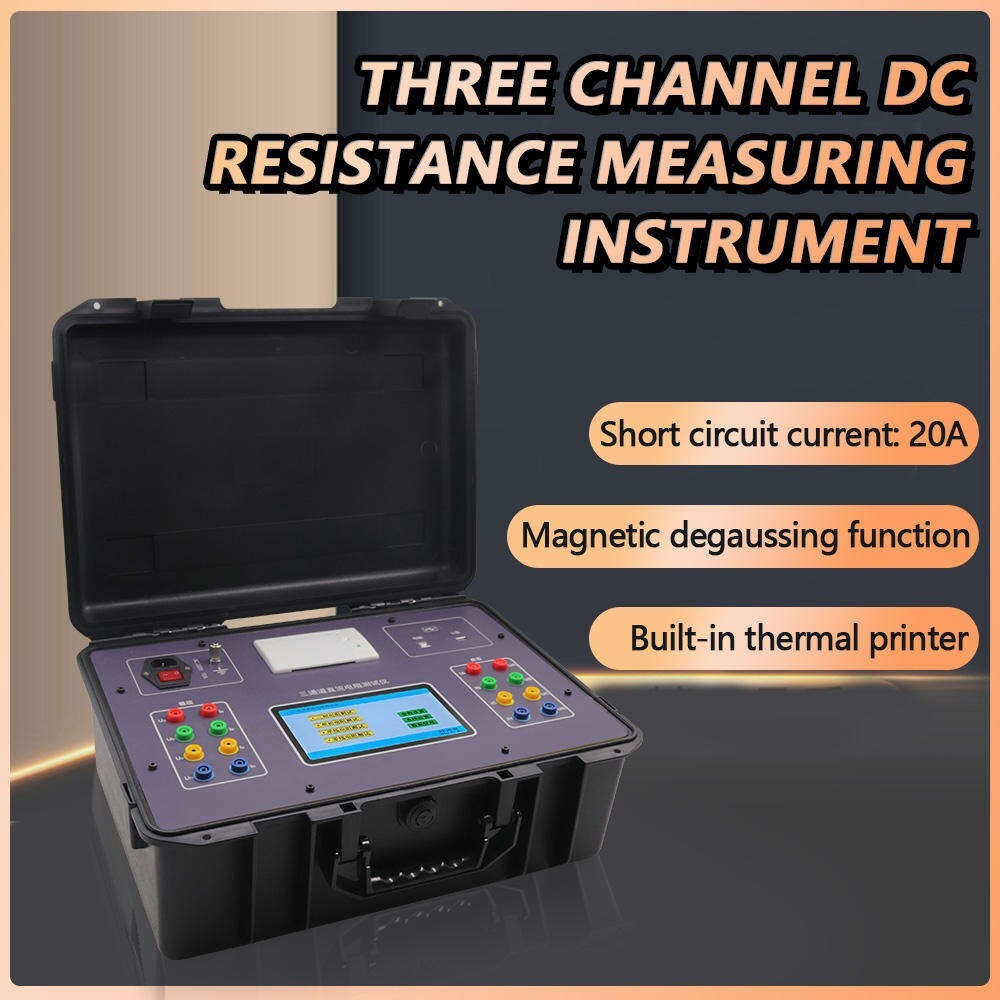

3CH DC Resistance Tester Measuring Instrument With 7-inch touch color screen
USD 2630.25 USD
Specifications
| Country Of Origin | China |
| Rated Measured Power | 1000W |
| Short Circuit Test Current | 0.2A、0.5A、2A、5A、10A、20A |
| Maximum Short-circuit Current | DC 20A±10% |
| Data Storage: | 500 |
| Power Supply | AC 220V 10A (50Hz) |
| Brand | CNYST |
| Accuracy: | ± 0.2% FS ± 5dgt |
| Minimum Resolution | 0.001 m Ω |
| Measurement Method | Four wire test |
| Maximum No-load Voltage | DC 27V±10% |
| UPC | 635393532762 |
Tap position. Tap position can be manually set in the setting interface. Three phase unbalance rate. DC resistance. Conversion resistance. Short circuit test current. Magnetic aid test. 0.0001m Ω~5000 Ω Accuracy: ± 0.2% FS ± 5dgt Minimum resolution: 0.001 m Ω.
