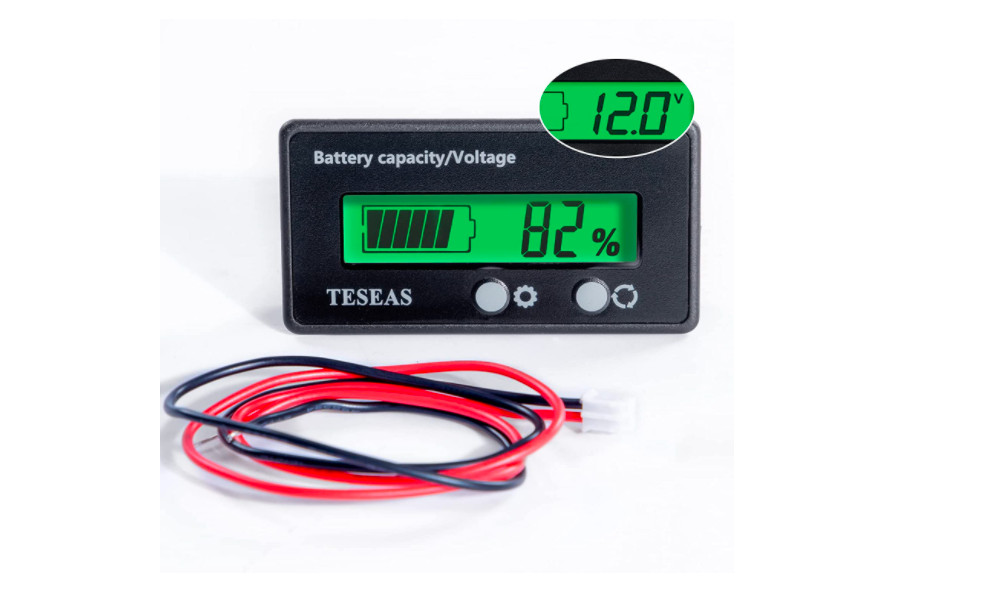

Battery Voltage Monitor Gauge Meter LCD Display Green Backlight Boat Car Vehicle
Specifications
| Return Shipping Will Be Paid By | Seller |
| All Returns Accepted | Returns Accepted |
| Item Must Be Returned Within | 30 Days |
| Refund Will Be Given As | Money Back |
| MPN | 5341231 |
| Brand | vic_space1 |
Battery Voltage Monitor Gauge Meter LCD Display Green Backlight Boat Car Vehicle Item detailed information: Universal Battery Capacity Voltage Meter - Wide voltage input range DC 12V-48V Lead-acid Batteries,2S-15S Lithium Batteries,3S-17S LiFePO4 Batteries: Ternary lithium batteries, polymer batteries, lithium-ion batteries, storage batteries.Useful Left Setting Key & Right Switch Key - The guage meter's Right Switch key is for switching Capacity, Voltage and Turn off. Left setting key of the voltage monitors have several functions: Cycle voltmeter/battery percentage, turn on the backlight, black, sleep mode, battery type selection etc.Capacity and Voltage are displayed cyclic automatically in 2 seconds(can be set).Safety to Use in Many Vehicle - Built-in 30cm power cable, simple to connect: You just need to connect the red wire to positive and black one to negative. Reverse polarity protection design, won't burn if connect reversely.The battery gauge meter is perfectl for Boat Car RV Motorcycle Golf Cart etc. Meet your different needs and battery monitor meter will give you great experience! Kindly remembers: The meter must be set before installation.Green Backlight & Sleeping Mode Settable - The capacity voltage meter has Large LCD screen display with green backlit and low power consumption.Besides, the capacity indicator can be set auto off after 10 seconds or always display either capacity or Voltage.Portable,Waterproof Battery Monitor with Instruction - Small size(2.4 * 1.3 * 0.5in), light weight. Equipped with a PVC film, so the surface of battery tester is waterproof.Comes with 1 battery indicator, 1 2-pin wire, 1 instruction. No need to worry about how to set the battery meter, just follow the instruction steps.It's EASY!Battery Capacity Voltage Gauge Monitor Meter 12/24/36/48V DC Golf Cart rv Capacity IndicatorWaterproof Tester LCD Display Green Backlight for Lithium Lead-acid&LiFePO4 Batteries Boat Car RV MotorcycleFunctions of meter:1. Manually switch battery percentage / voltage / power off2. Automatic recycling display battery capacity / voltage per 2 seconds (Settable)3. 10s delay auto off (Settable)4. Double discharge curve selection (Settable)Specifications of indicator:Color: BlackWeight: 18gMaterial: HTN / PCBDimensions: 61.3 * 33.3 * 13.5mm / 2.4 * 1.3 * 0.5inScreen Size: 43 x 11.3mm / 1.69" x 0.44"Wire Length: 30cm / 11.8"Voltage Range: 6-63 (V)Circuit Load Current: 5 - 6mAStorage Temperature: -10 ~ 50℃Suitable for: 3s-15s 3.7V Lithium Batteries; Lead Acid Batteries 12V, 24V, 36V, 48V;Setting Instruction:1 - Connect the cable to the battery.2 - Hold down the setting button and plug in the connector at the same time.3 - Release the setting button and you should see P01. P is the type of battery: P = lead acid, L = lithium, F - lithium iron phosphate.4 - Press the setting button to select P, L or F.5 - The number 01 is the number of cells or battery types For lead acid batteries, P: 01 = one 12v battery, 02 = two 12v batteries, etc. For lithium batteries, L: 01 = one 3.7v cell, 02 = two 3.7v cells, etc. For lithium iron phosphate, F: 01 = one 3.2v cell, 02 = two 3.2v cells, etc.6 - Press the setting button to add 1 to the number, function button to subtract 1.7 - After setting, e.g., P01, hold the function button down to display S - 1.8 - Press the setting button to select 1 - 5.9 - Unplug the connector to save the settings.10 - Plug the connector back in.Package List:1 x Battery Capacity Voltage Meter with ConnectingFree Shipping: within the 48 U.S. statesShipment only to the lower 48 states. We do NOT ship to PO Boxes Returns: We offer a 30 day return policy from the receiving date. All items purchased must be returned in the same condition as they were delivered in. Items defective upon receipt must be packaged in their retail packaging as if new and returned with a detailed description of the problem.
