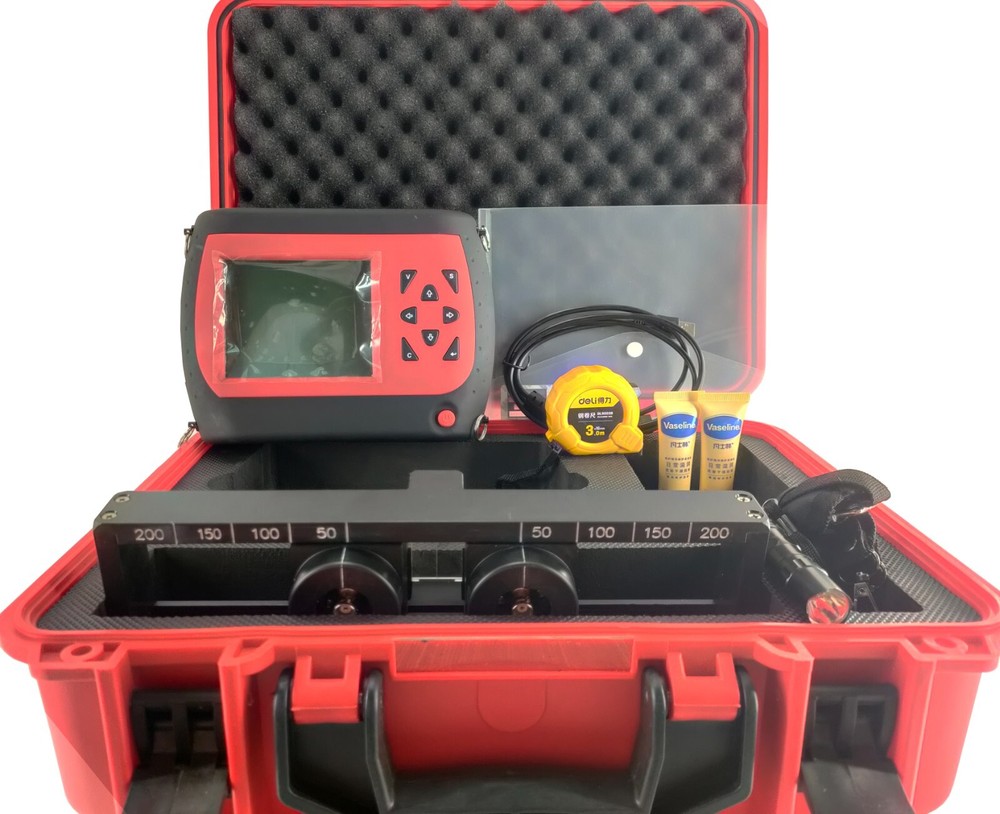

Digital Crack Depth Gauge Max Correction Depth of Damaged Layer 35mm With Stand
Specifications
| Return Shipping Will Be Paid By | Buyer |
| All Returns Accepted | Returns Accepted |
| Item Must Be Returned Within | 30 Days |
| Brand | CNYST |
| Type | Crack Depth Gauge |
| Maximum Depth Of Concrete Crack Testing | ≤ 500 mm |
| Maximum Correction Depth Of Damage Layer | 35mm |
| MPN | Crack Depth Gauge |
| Test Error | ≤ 5 mm |
| Host Volume | 220mm × 162mm × 91mm |
| Country/Region Of Manufacture | China |
| Test Data Storage Capacity | 25000 test data |
| Data Transmission Interface | USB |
Digital Crack Depth Gauge Max Correction Depth of Damaged Layer 35mm With Stand Product Features: Crack sounder is specialized in concrete surface crack depth testing Technical features: 1.Four-fold automation correction improves testing accuracy: Measurement without spanning the crack: automatically prompt abnormal data in the test. Calculation of sound speed: automatically reject the flat measurement intercept. Seam depth testing: automatically screen out erroneous test data. Calculation of seam depth: automatic correction of carbonation depth and other damage layer effects. 2、Specialized on-site crack depth test bracket, to ensure the accuracy of the measurement point spacing, greatly improve the detection accuracy and save testing time. 3、More scientific testing theory improves the reliability of testing results; Main technical indicators: 1, the maximum depth of concrete crack testing: ≤ 500 mm 2, test error: ≤ 5 mm or 5% ~ 10% of the actual depth of the seam 3、 Maximum correction depth of damage layer: 35mm 4、Number of test points without crossing the seam: 3 5、Number of test points across the seam: 2 or 3 (automatically selected by the instrument) 6, test data storage capacity: 25000 test data 7, data transmission interface: USB 8, power supply: built-in rechargeable lithium battery, power supply time up to 50 hours 9, host volume: 220mm × 162mm × 91mm Instrument composition: Including: host, bracket, connecting cable, plane transducer, software CD-ROM and so on.
