Digital LCD AC Panel Meter Voltage Amps Frequency Energy Power 40-300V 0-100A
Specifications
| Nach Erhalt Des Artikels Sollte Ihr Käufer Innerhalb Der Folgenden Frist Den Kauf Widerrufen Oder Den Rückgabeprozess Einleiten | 30 Tage |
| Marke | Markenlos |
| Herstellernummer | nicht zutreffend |
| UPC | Does not apply |
| EAN | Does not apply |
| MPN | Does Not Apply |
| Brand | Unbranded |

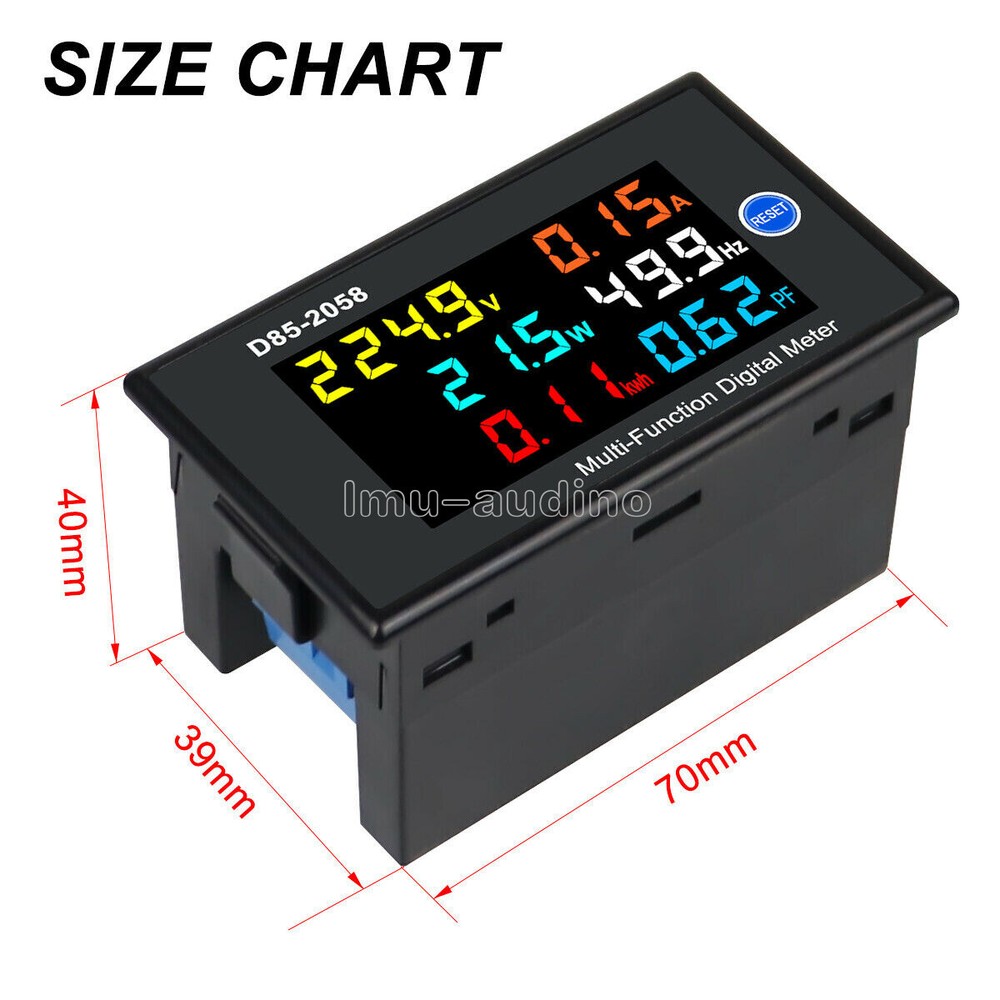

This meter can measure AC voltage,AC current, active power,power factor,power frequency and electric energy. HD LCD has adopt for diaply module Technical Indicators: - Model: D85-2058 - Range: AC voltage: AC 40.0-300.0V / 200.0-450.0V (you should select he suitable type of meter when your making order) AC current: AC 0-99.99A , minimum resolution is 0.01A Power frequency: 45.0Hz-65.0Hz Power factor: 0.00-1.00PF Active power: 0-45000W when the electric power between 0 and 9999.9W, this display accuracy is 0.1W Electric energy: 0-9 99999kwh, when the electric power between 0 and 999.99kwh, the display accuracy is 0.01kwh, when between 10000.0-9999.9kwh,the display accuracy is 0.1kwh, when between 10000.0 and 999999kwh, the display accuray is 1kwh - Speed: 2 times per second - Size: 70*39*40mm / 2.76*1.54*1.57 inches - Installation size: 68*38mm / 2.68*1.50 inches - Auto-saving: when power off, the electric energy will be saved. the saved electric energy will be accumulated continue when the meter power-on next time Application method: 1. According to connection graph, connect the green wire of secondary current transformer to the blue terminal of meter and make the wire of measurement circuit through the hole in the current transformer. 2. Supply power and start to measure and display the result 3. Press down the button last for 5 seconds, the electric energy will be zero Package Included: 1 * AC panel meter 1 * Manual Attention: 1. The meter will be destroyed when you make wrong connection method with voltage 2. The meter can only use to measure 45-65Hz AC electricity, it will be destroyed when use to input(green terminal) and secondary current transformer(bluet terminal), measrue square wave,output of inverter and correction sine wave Contact usReturn PolicyFeedbackContact us For anything problem about product, price, shipping or order status, pleasecontact us via eBay message.Just contact us using the "Ask the seller a question" link on eBay. We expect positive feedback and 5 scores DSR from you. Return Policy We believe our items are so outstanding. We are convinced you will be happy with your Purchase. If you do not satisfy with our items. Please simply return to us within 30 Days in original condition. Just pay for the returned postage. Then we can issue full refund to you after the returned item arrived at our warehouse. Please include your eBay ID and item number with any email requests. Feedback * When you satisfied with our product and services please leave us positive feedback. * If you have got the package, please confirm "Delivery on time" For us. * If a problem occurs, contact us immediately with any email request. * Just contact us using the " Ask the seller a question" link on eBay. Your Satisfaction is our Priority. Our goal is to make all our customers as happy as possible while shopping with us.
