Electro Industries Gauge Tech SHARK 100 Multifunction Power & Energy Meter

Specifications

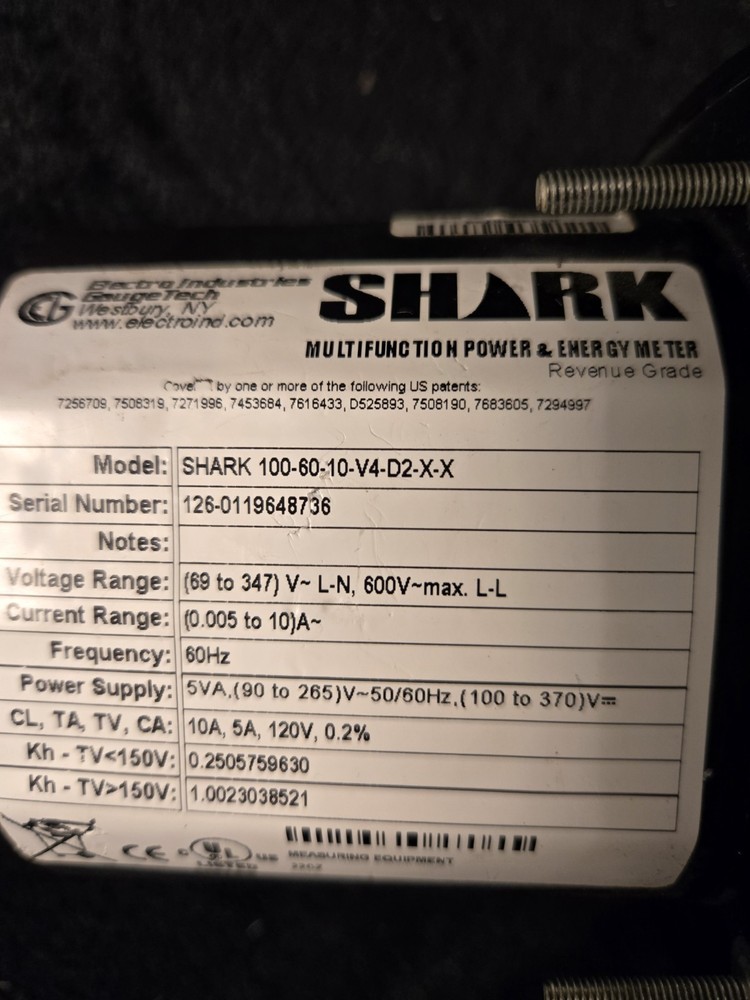

Manufacturer: Electro Industries/GaugeTech (EIG) Model: SHARK 100-60-10-V4-D2-X-X Type: Revenue-grade multifunction power & energy meter Application: Used in industrial/commercial panels for monitoring and recording electrical parameters such as voltage, current, power factor, kW, kVAR, frequency, energy consumption, and load demand. Voltage Range 69–347 V (line-to-neutral), 600 V max (line-to-line) Current Range 0.005 A to 10 A Frequency 60 Hz Power Supply 5 VA, 90–265 V AC (or 100–370 V DC) Accuracy Class 0.2% (revenue grade) Inputs Three-phase, 4-wire (Ia, Ib, Ic — with High/Low terminals) Outputs Pulse output (Wh Pulse), and serial communication via optional modules (RS-485 Modbus, Ethernet, etc.)
