Ground Resistance Soil Resistivity Tester Range 0Ω～30KΩ Test Frequency 128Hz
Specifications
| Return Shipping Will Be Paid By | Buyer |
| All Returns Accepted | Returns Accepted |
| Item Must Be Returned Within | 30 Days |
| Brand | CNYST |
| Type | Earth Resistance Tester |
| Interference Current | 2A (should be avoided) |
| Short Circuit Test Current | 20mA (Sine Wave) |
| Open Circuit Test Voltage | AC 28V max |
| Test Frequency | 128Hz |
| MPN | 2024 |
| Country/Region Of Manufacture | China |
| Interference Voltage | 20V (should be avoided) |

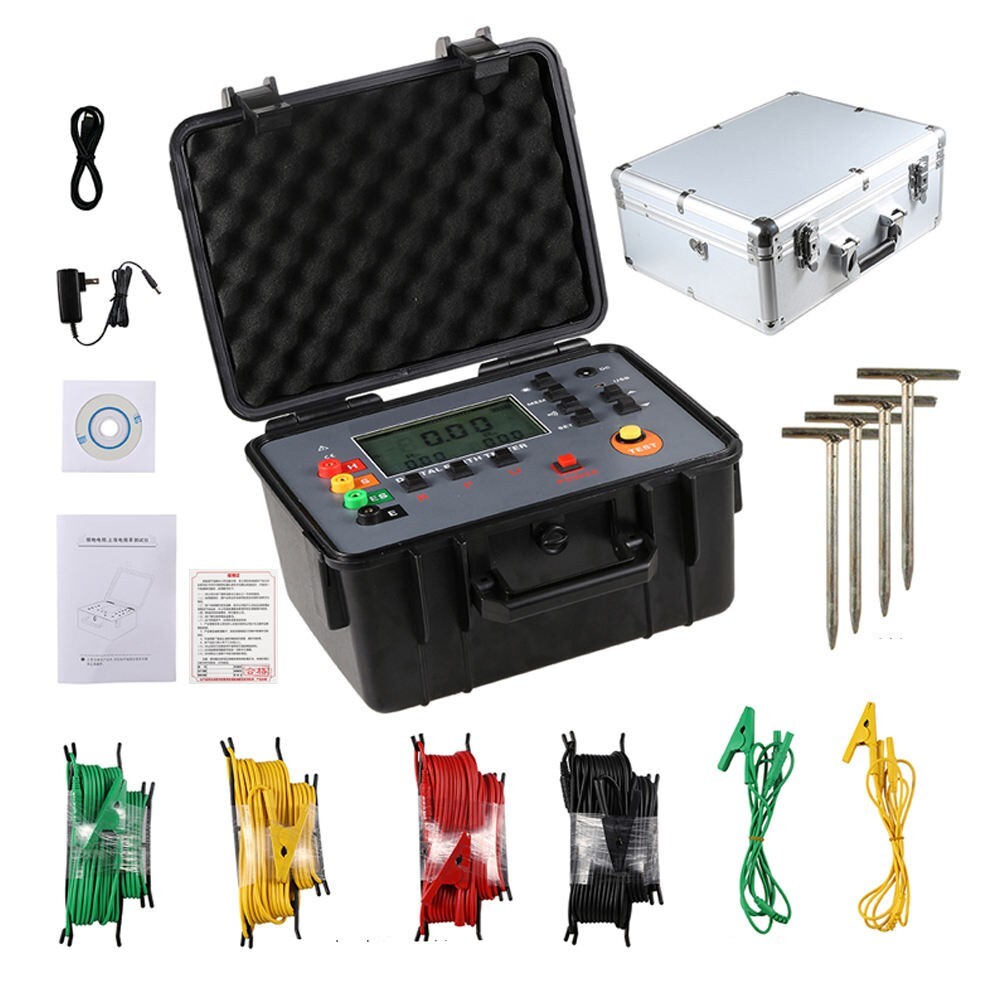

Ground Resistance Soil Resistivity Tester Range 0Ω～30KΩ Test Frequency 128Hz Application Scenarios: This soil resistivity grounding resistance tester (multi-function type) is a common instrument for testing and measuring grounding resistance commonly used instruments, he uses a large LCD gray and white screen backlit display and microprocessor technology, through the microprocessor-controlled 2-wire, 3-wire, 4-wire French grounding resistance test and soil resistivity test. Bringing together many grounding test functions, it can quickly and comprehensively measure various parameters in the grounding network. It is widely used in telecom, electric power, meteorology, machine room, oil field, power distribution line, tower transmission line, gas station, factory grounding network, lightning rod and so on. The instrument is characterized by accurate, fast, simple, stable and reliable testing. Microprocessor control, can accurately detect grounding resistance, soil resistivity, grounding voltage and AC voltage. Its use of fast filtering technology can minimize interference. The same screen displays the resistance value of the auxiliary electrode, which is convenient for judging the measurement error due to environmental factors, and facilitates the more accurate measurement of the real resistance value of grounding, while storing 500 groups of data, and the data can be monitored online through the monitoring software, and the USB data can be uploaded to the PC and has the unique functions of value retention and intelligent alarm prompts. By the host, monitoring software, test line, USB cable, grounding pin composition, with historical data reading, access, save, report, print and other functions. Main Features: FunctionTwo three four-wire measure grounding resistance, soil resistivity;Ground voltage, AC voltage measurementAmbient temperature and humidity23℃±5℃，below 75%rhPower8.4V lithium battery (built-in)Interference voltage<20V (should be avoided)Interference current<2A (should be avoided)Measure R electrode spacinga＞5dMeasured electrode spacinga＞20hAuxiliary ground resistanceReference condition <100Ω, working condition 20mA (Sine Wave)Open circuit test voltageAC 28V maxElectrode spacing rangeCan be set 1m ～ 100mChange gearfully automatic shifting 0.00Ω ～ 30.00kΩfully automatic shifting 0.00Ωm～9000kΩmBacklightControllable gray screen backlight, suitable for use in dim placesDisplay mode4-bit large LCD display, gray screen backlightMeasurement instructionsLED flashing indicator during measurementLCD size111mm×68mmLCD display field108mm×65mmInstrument sizeL/W/H：277.2mm×227.5mm×153mmStandard test line length4 strips：red 15m，black 15m, yellow 10m，green 10m each oneSimple test line2strips：yellow 1.6m，green 1.6m each oneAuxiliary Grounding rod4PCS：φ10mm×200mmMeasure timeGround voltage：about 3 times/sec;grounding resistance、soil resistivity: about 7 seconds/timeLine voltageMeasurement below AC100V (ground voltage measurement function cannot be used to measure commercial power)USB interfaceWith USB interface, software monitoring, storage data can be uploaded to the computer, save and printCommunication LineOne USB communication line, 1.5m longData storage500 groups, "MEM" storage indicates, flashing "FULL" symbol indicates that the memory is fullData reviewData review function: "MR" symbol displayOverflow displayOver-range overflow function: "OL" symbol displayInterference testAutomatic identification of interference signals, "NOISE" symbol indication when the interference voltage is higher than 5VAuxiliary grounding testWith auxiliary ground resistance test function, 0.00KΩ ~ 30kΩ (Rh max = 3kΩ +100R <50kΩ; Rs max = 3kΩ +100R <50kΩ)Alarm functionAlarm when the measured value exceeds the alarm setting valueBattery voltageReal-time display of battery power, reminding timely charging when battery voltage is lowAutomatic Shutdown“APO” Indicates, automatic Shutdown After 15 MinutesPower consumptionStandby: 40mA Max(Backlight off)Turn on backlight: about 43mAmeasuring：75mA Max(Backlight off)WeightInstrument： 2450g(including battery)Test lines：1300gAuxiliary grounding rod： 850g(4PCS)Working temperature and humidity-10℃～40℃；below 80%rhStorage temperature and humidity-20℃～60℃；below 70%rhOverload protectionGrounding resistance：AC 280V/3 seconds between H-E and S-ES portsInsulation resistance20MΩ以上(500V between circuit and housing)Pressure resistanceAC 3700V/rms(between circuit and housing)Electromagnetic propertiesIEC61326(EMC)Suitable for safety regulationsIEC61010-1(CAT Ⅲ 300V、CAT IV 150V、pollution level2)；IEC61010-031；IEC61557-1(grounding resistance)；IEC61557-5(soil resistivity)；JJG 366-2004.
