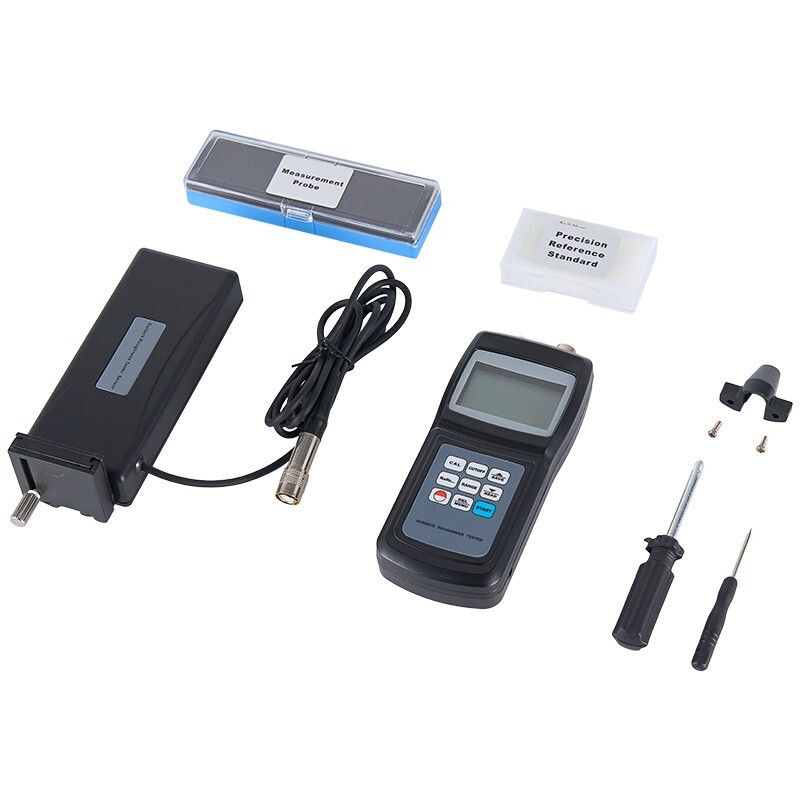

Split Surface Profile Gauge Sensor Radius 5µm Measurement Force 4mN (0.4gf)

USD 942.60 USD

SKU: adbUiO8O

Brand: CNYST

MPN: 200009051553

GTIN: 635405313891

Condition: New

Tags: ±10% 0.001/0.01/0.1 0.25mm,0.8mm,2.5mm 10µm 16mN(1.6gf) 17.5mm/0.7inch 200009051553 280g 48 mm 635405313891 China CNYST Diamond LCD Ra,Rq,Rz,Rt RC,PC-RC,GAUSS Surface profile gauge

Categories: Test Meters & Detectors

Specifications

Parameters	Ra,Rq,Rz,Rt
Vertical Radius Of Guiding Head	48 mm
MPN	200009051553
Weight	280g
Brand	CNYST
Profile Digital Filter	RC,PC-RC,GAUSS
Maximum Driving Stroke	17.5mm/0.7inch
Accuracy	±10%
Radius Of Probe Pin	10µm
Material Of Probe Pin	Diamond
Country/Region Of Manufacture	China
Measurement Force Of Probe	16mN(1.6gf)
Cutoff Length(l)	0.25mm,0.8mm,2.5mm
Display	LCD
Resolution	0.001/0.01/0.1
UPC	635405313891

The sensor gets the surface roughness by the sharp built-in probe. Radius of Probe Pin. Material of Probe Pin. Probe Angle. Cutoff length(l). Highly sophisticated inductance sensor. Be compatible with four standards of ISO, DIN, ANSI and JIS.
